Cornerstone3D and Cornerstone3DTools: 7 New Annotation Tools

Publish Date: 23 June 2022

Cornerstone3D and its library, Cornerstone3DTools, enables visualization and manipulation of medical images viewed in web browsers. As the name suggests, ​​Cornerstone3DTools enables drawing and manipulation of annotations in 3D space. Annotations in Cornerstone3DTools are rendered as SVG elements and are stored in the actual physical space of the image, which ensures they are displayed at the best possible quality on any monitor and allows for rendering/modification of the same annotations in multiple viewports in your web browser. In this blog post, we’ll show seven of the new annotation tools: length tool, probe tool, rectangle ROI tool, elliptical ROI tool, bidirectional tool, angle tool, and arrow annotate tool.

Annotation Tools

Length Tool

The length tool allows you to measure the distance between two points on a slice. It can be used in all imaging planes, including oblique reconstructed planes.

Cornerstone3DTools Length Tool
Cornerstone3DTools Length Tool

Probe Tool

The probe tool allows you to select a location and see the value of a voxel and its index. It can be used in all perpendicular views (axial, sagittal, coronal). This tool’s text box is dynamically generated based on the viewport’s underlying Modality, so, if the viewport is displaying CT, then Hounsfield units will be shown, and if the viewport is displaying PET, then SUV units will be shown.

Cornerstone3DTools Probe Tool
Cornerstone3DTools Probe Tool

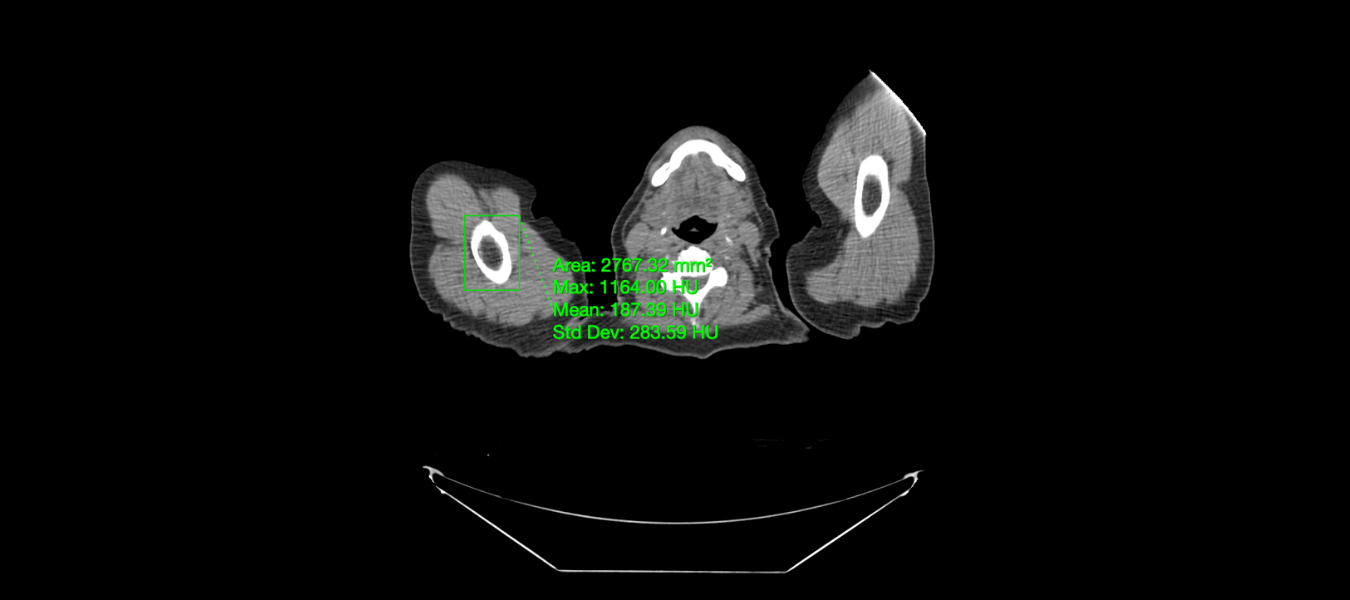

Rectangle ROI Tool

Mean, standard deviation, max, and area of a rectangular region of interest can be calculated using the rectangle ROI tool. It can be used in all perpendicular views (axial, sagittal, coronal). This tool’s text box lines are dynamically generated based on the viewport’s underlying Modality, so, if the viewport is displaying CT, then the statistics will be shown in Hounsfield units, and if the viewport is displaying PET, then the statistics will be shown in SUV units.

Cornerstone3DTools Rectangle ROI Tool
Cornerstone3DTools Rectangle ROI Tool

Elliptical ROI Tool

Mean, standard deviation, max, and area of an elliptical region of interest can also be calculated using the elliptical ROI tool. It can be used in all perpendicular views (axial, sagittal, coronal). This tool’s text box lines are also dynamically generated based on the viewport’s underlying Modality.

Cornerstone3DTools Elliptical ROI Tool
Cornerstone3DTools Elliptical ROI Tool

Bidirectional Tool

The bidirectional tool allows you to measure length and width at the same time. It can be used in all planes, including oblique reconstructed planes.

Cornerstone3DTools Bidirectional Tool
Cornerstone3DTools Bidirectional Tool

Angle Tool

The angle tool allows you to measure the angle between three points.

Cornerstone3DTools Angle Tool
Cornerstone3DTools Angle Tool

Arrow Annotate Tool

The arrow annotate tool allows you to draw an arrow and add text on an image.

Cornerstone3DTools Arrow Annotate Tool
Cornerstone3DTools Arrow Annotate Tool

Cornerstone3D Experts

Radical Imaging can create custom viewers, workflows, and tools using Cornerstone3D and Cornerstone3DTools. In collaboration with our colleagues at Massachusetts General Hospital Department of Radiology, we actively develop and maintain both OHIF and Cornerstone, and we’ve utilized our expertise to help dozens of clients with their OHIF/Cornerstone projects. Tell us more about your custom medical imaging needs and learn more about our capabilities by scheduling a discovery call with us here.
